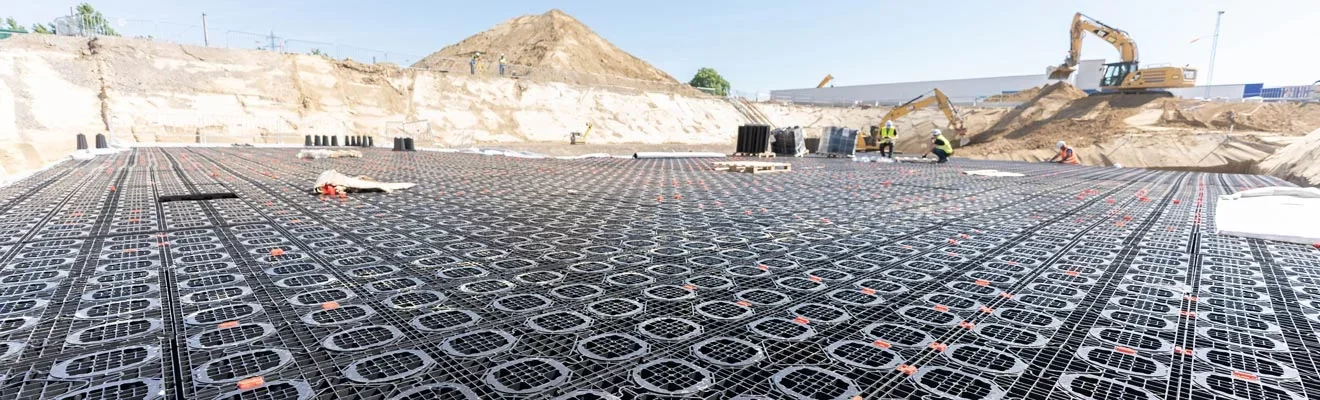

ACO Stormbrixx is a modular infiltration system made with synthetic materials that allows both the storage of large volumes of rainwater and the infiltration of the water itself. The system is based on modules arranged in an interconnected pattern thanks to the intelligent Snap Lock assembly system, which gives it excellent structural rigidity. The multifunctional inspection module also ensures easy accessibility for inspection and maintenance of the entire system. The modules can be stacked together, with a consequent reduction in transport costs and CO2 emissions compared to traditional systems, and a relative halving of the space required for storage, both in warehouses and on site.

ACO Stormbrixx
Infiltration, retention and water reuse system.

Product Overview :

  • Maximum stability thanks to design and laying in bond
  • Inspection and rinsing possible in all directions
  • Low transport costs because the basic elements can be stacked
  • Lower CO2 emissions due to less transport costs
  • Easy installation thanks to the modular principle
  • High void volume of 95%

Infiltration System

ACO Sales Manager Contacts

For more information send E-mail to sales@aco.sa or get in contact with our Sales Managers by clicking the above button.

ACO Stormbrixx SD
Standard Duty

  • Maximum stability thanks to design and laying in bond
  • Inspection and rinsing possible in all directions
  • Low transport costs because the basic elements can be stacked
  • Lower CO2 emissions due to less transport costs
  • Easy installation thanks to the modular principle
  • High void volume of 95%

Areas of use:

  • Landscaped areas with pedestrian traffic
  • Landscaped areas with passage of garden equipment
  • Driveways, parking lots for cars up to 9,000 kg
  • Accidental traffic of emergency vehicles
  • In case of possible heavy traffic - contact the ACO Design team .

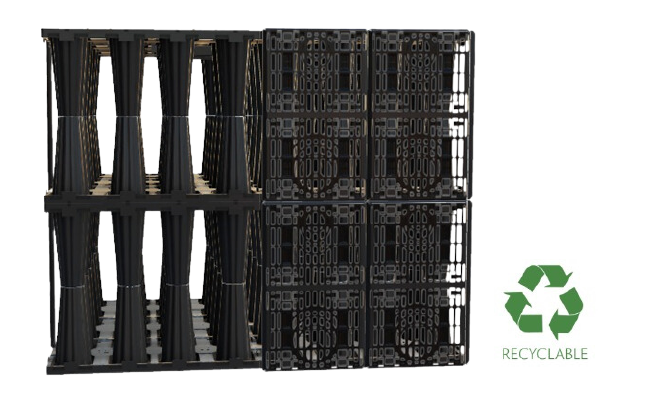

ACO Stormbrixx HD
Heavy Duty

  • Durability and load capacity of the structure thanks to folding on the brick bond
  • possibility of simple and continuous maintenance and inspection
  • low transport costs due to the stackability of the basic elements
  • economical transport and practical handling on the construction site - lower CO2 production
  • simple installation by modular principle
  • high useful volume 95%

Areas of Use :

  • Landscaped areas with pedestrian traffic
  • Landscaped areas with passage of garden equipment
  • Truck traffic up to 30,000 kg
  • For applications with unusually high loads and/or high groundwater - contact the ACO Design team .
  • Height of 1 layer: 610 mm
  • Basic elements/m3: 4.5
  • Volume/basic element: 209 l
  • Storage coefficient: 95 %
  • Min. cover depth: 1.0 m
  • Max. cover depth: 3.40 m
  • DIBt certified (Installation up to 3 layers)
